Directional Skylight Gen 4 – Built-In Artificial Sky Panel

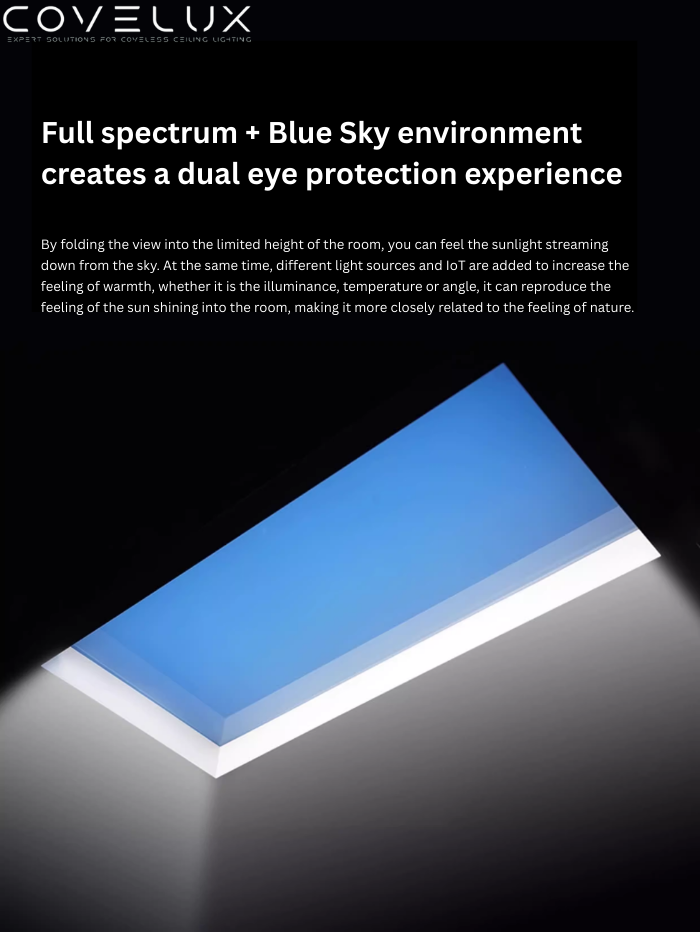

The Directional Skylight Gen 4 is a recessed artificial skylight designed to sit inside your false ceiling. It creates a true “open sky” depth effect with stronger brightness and a clean, built-in finish. This model is suitable for HDB, condos, landed homes, offices, retail shops, wellness centers and hospitality spaces with enough ceiling cavity.

Skylight Style

Blue Sky – vivid blue tone with a natural sky effect

Installation Types

Flat Flush Installation – neat and clean ceiling finish
Deep Embedded Installation – enhanced skylight depth
Borderless Installation – concealed frame for a premium look

Ceiling depth requirements vary based on model height.

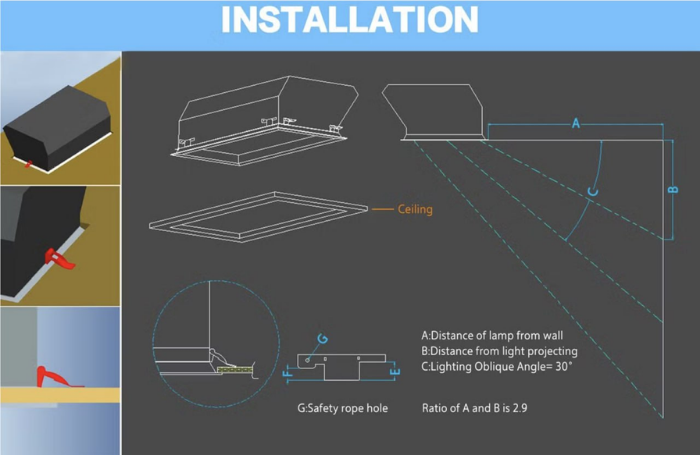

Mounting Type

Our skylight uses the Embedded / Recessed Mount, which is the correct installation method for Singapore homes.

Why This Mounting Method?
– Installed by cutting an opening into your gypsum board or wood false ceiling
– The skylight body is embedded into the opening
– The frame sits fully flush and seamless with the ceiling
– Creates a clean, modern, hotel-style finish
– Perfect for Singapore Renovations

Ideal for HDB & Condo gypsum false ceilings
Achieves a flat, flush, seamless appearance
This is the standard and preferred skylight mounting method in the Singapore market

Light Output

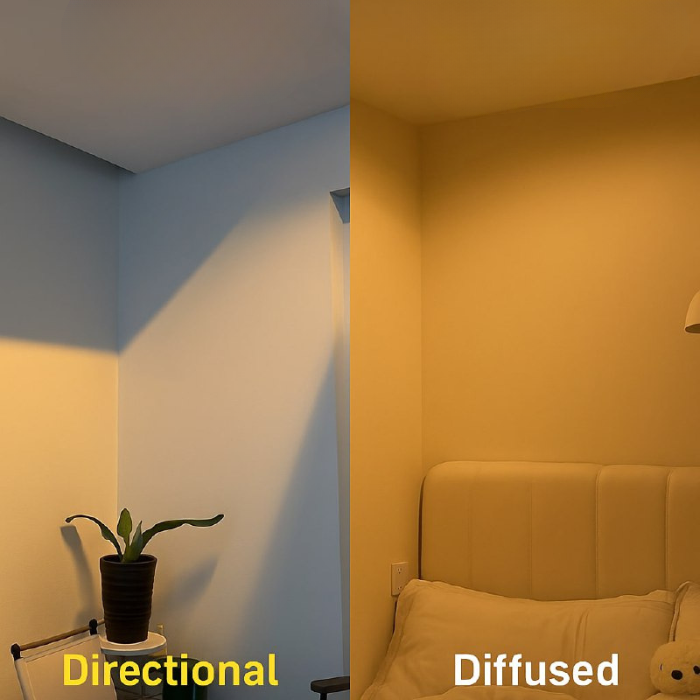

40° Directional Light
This beam angle mimics blue daylight and natural shadow depth, creating a realistic daylight effect indoors.

Key Features

• Deep optical chamber for strong sky depth

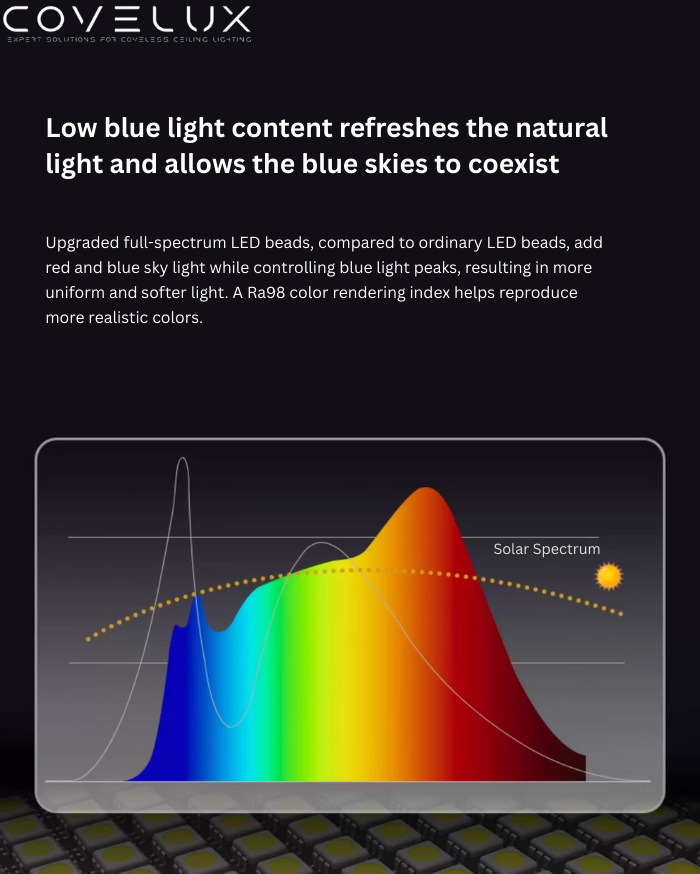

• Full-spectrum LED with adjustable brightness and color temperature

• High CRI for accurate and natural colors

• Nano-Rayleigh diffusion film for soft, even gradients

• Directional light projection for lifelike lighting

• Seamless recessed integration for feature ceilings

• Modular design for multi-panel layouts

• Consistent clarity, brightness and color

Recommended Applications

• Living rooms

• Bedrooms

• Windowless bathrooms

• Study rooms and offices

• Retail and display spaces

• Gyms and wellness centers

• Hotels and spa interiors

Product Specifications

Installation: Flush / Deep Embedded / Borderless (ceiling cavity required)

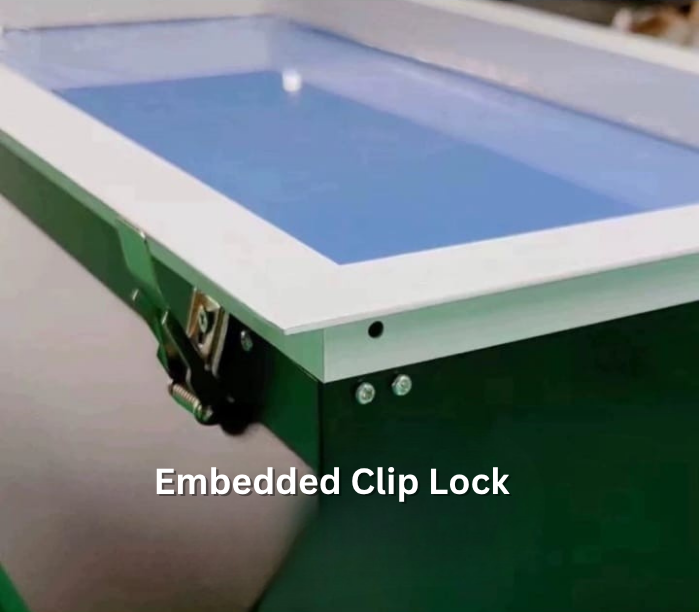

Mounting: Embedded Clip-Lock or Integrated Self-Lock
Light Type: 40° directional blue light beam
LED: Full-spectrum, CRI ≥95

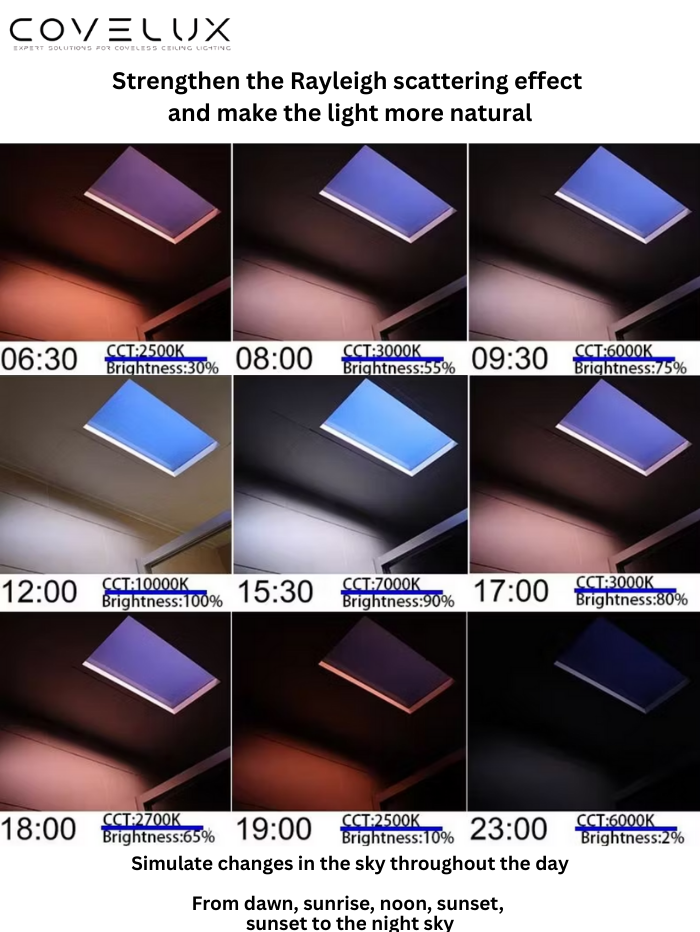

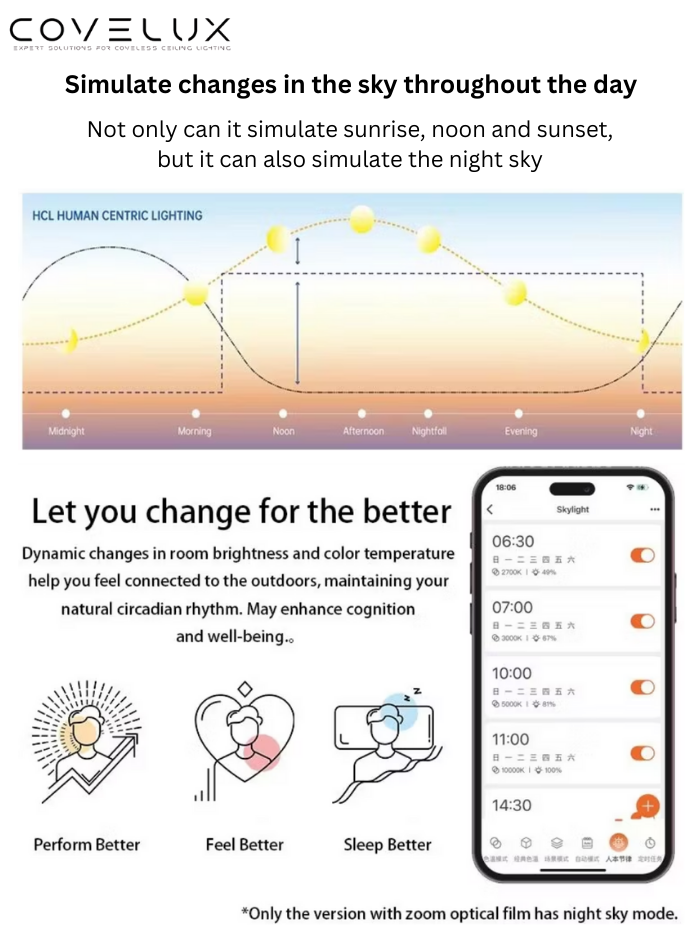

CCT: 2700–6500K adjustable
Optics: Deep light chamber + Nano-Rayleigh diffusion
Flicker: <0.05% (anti-flicker)
Blue Light Safety: RGO safe-light
Material: Aluminum frame + skylight optical panel
Control: Standard LED driver (smart driver optional)
Use: Indoor recessed ceilings only

Available Sizes & Power

• 600 × 300 × 160 mm – 36W (Opening: 580 × 280 mm)

• 600 × 600 × 230 mm – 80W (Opening: 580 × 580 mm)

• 1200 × 300 × 160 mm – 100W (Opening: 1180 × 280 mm)

• 1200 × 600 × 230 mm – 160W (Opening: 1180 × 580 mm)

Ceiling Depth Required

• 160 mm models: ≥ 19 cm

• 230 mm models: ≥ 25 cm

Important Notes

• Price listed is for supply only

• Installation cost depends on your ceiling structure

• Directional light mode gives the most realistic sunlight effect

For sample viewing, quotations or technical support:
